Clips & Braids

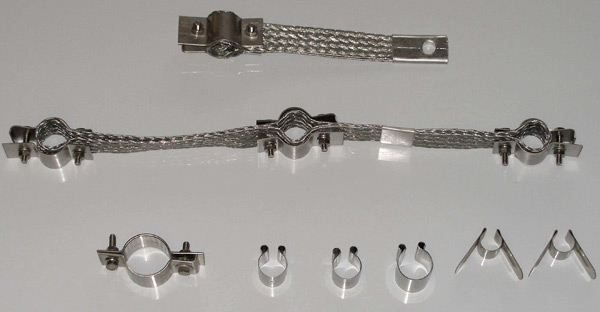

Overview of Clips & Braids

Held in place by stainless steel spring clamps, braided aluminum terminal straps in 25, 50, 100, and 200 amperage ratings are available in three primary styles; ‘Single Loop’, ‘Double Loop’ and ‘Post to Post’.

Terminal Clamps

The terminal clamps are used to hold the aluminum straps in compression around the circumference of the Starbars. The aluminum strap and terminal clamp should be installed at the very end of the Starbar. There are two types of clamps:

• "M" -- which derives its name from its similarity to the letter M, and manual.
• "T" -- which is used with an expansion tool. The T type clamp is useful for installations where space is limited.

Temperature Limitation

Clamps are made from heat resistant steel and should never be operated in an ambient temperature over 500°F (260°C).

Expansion Tool

These tools are used for installation and removal of the T type clamps. Besides the standard in-line type there are two special types, a RA right angle and extended in-line type.

Identification

The stainless steel clamps are stamped with a number for easy identification and proper matching to the correct diameter Starbars. The expansion tools have the part numbers marked on the handle.

Availability

Most sizes are available from stock. Others can be shipped in one week or quicker for emergencies.

Ways to order Clips & Braids

Call us now on 0044 1782 333377 and one of our heating element specialists will help you make your order as well as discuss any other heating element requirements you may have.

Email us now on sales@midlandelements.co.uk with your specific heating element requirements and we will call you back to discuss the details of your order and answer any questions you may have about your heating element requirements, or the services we can provide to help you and your business.

Why choose us for your Clips & Braids:

• Great reputation & customer service.
• Leading worldwide suppliers
• Parts for every type of furnace
• Fast replacement parts
• Competitively priced
